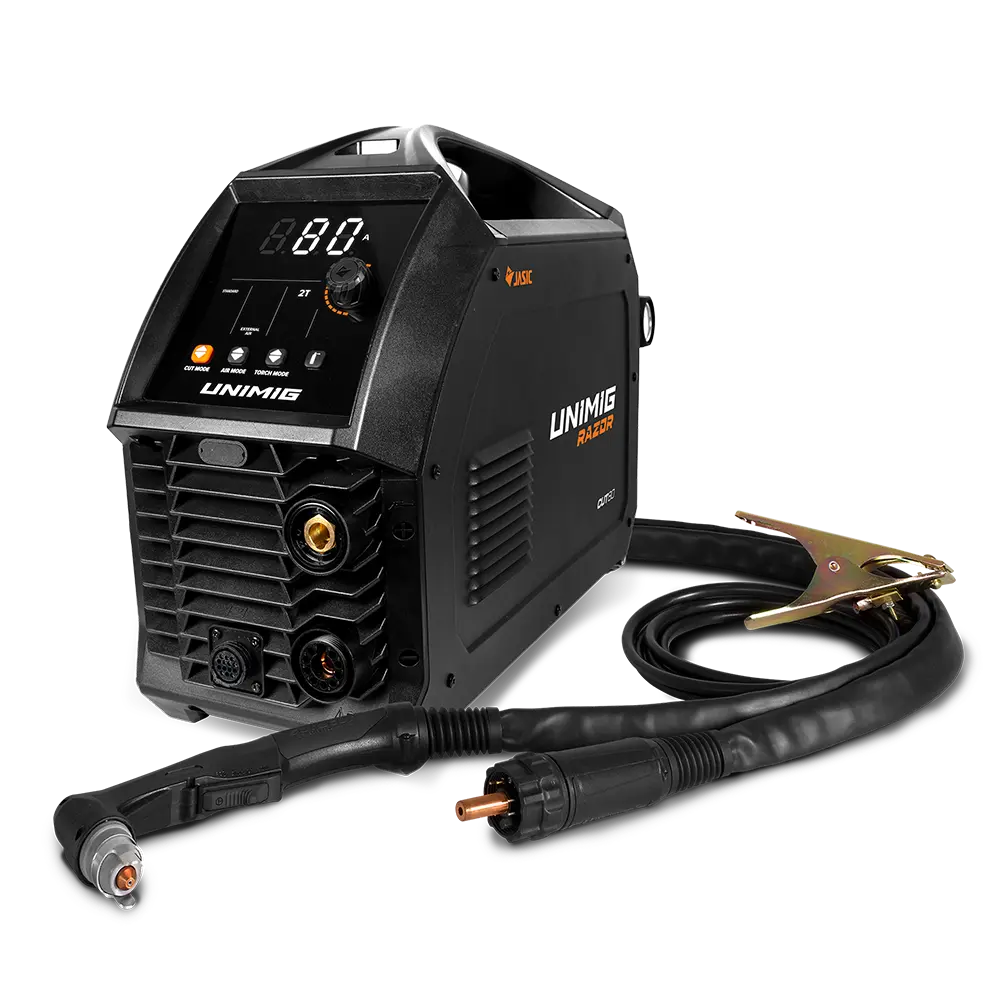

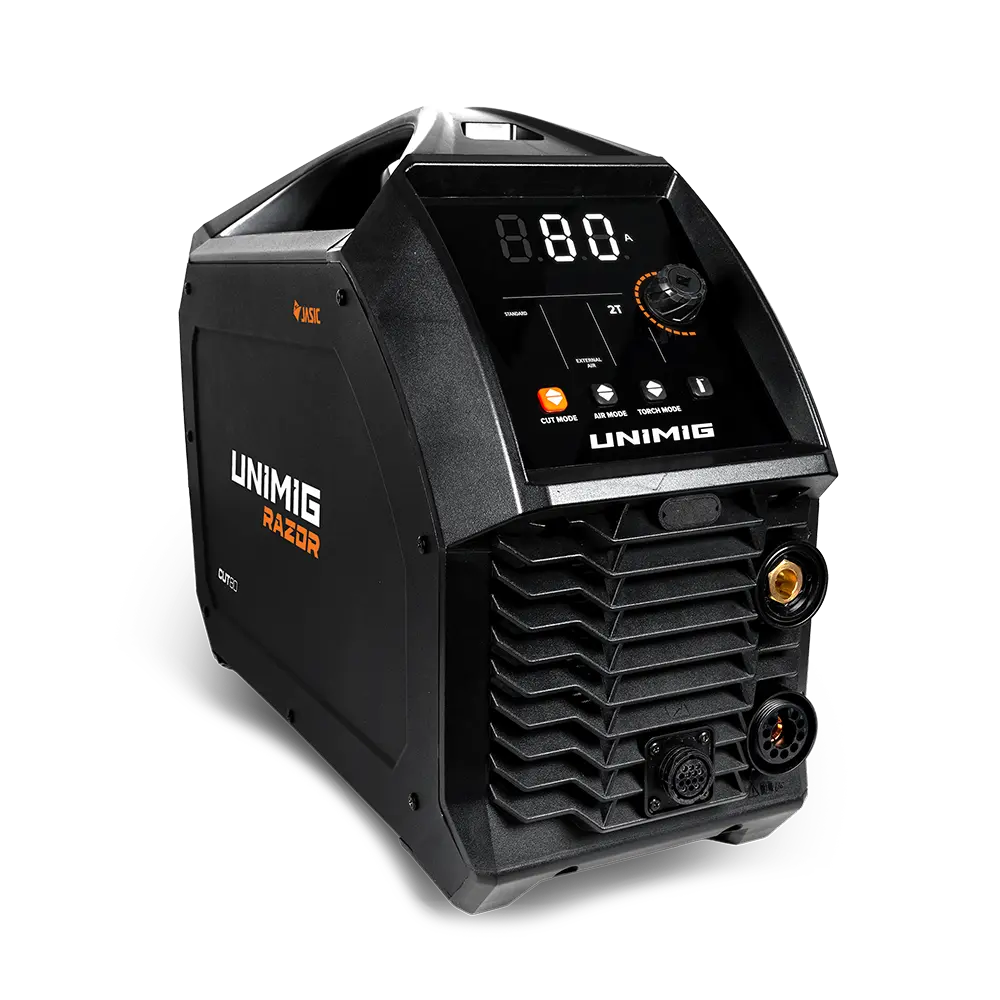

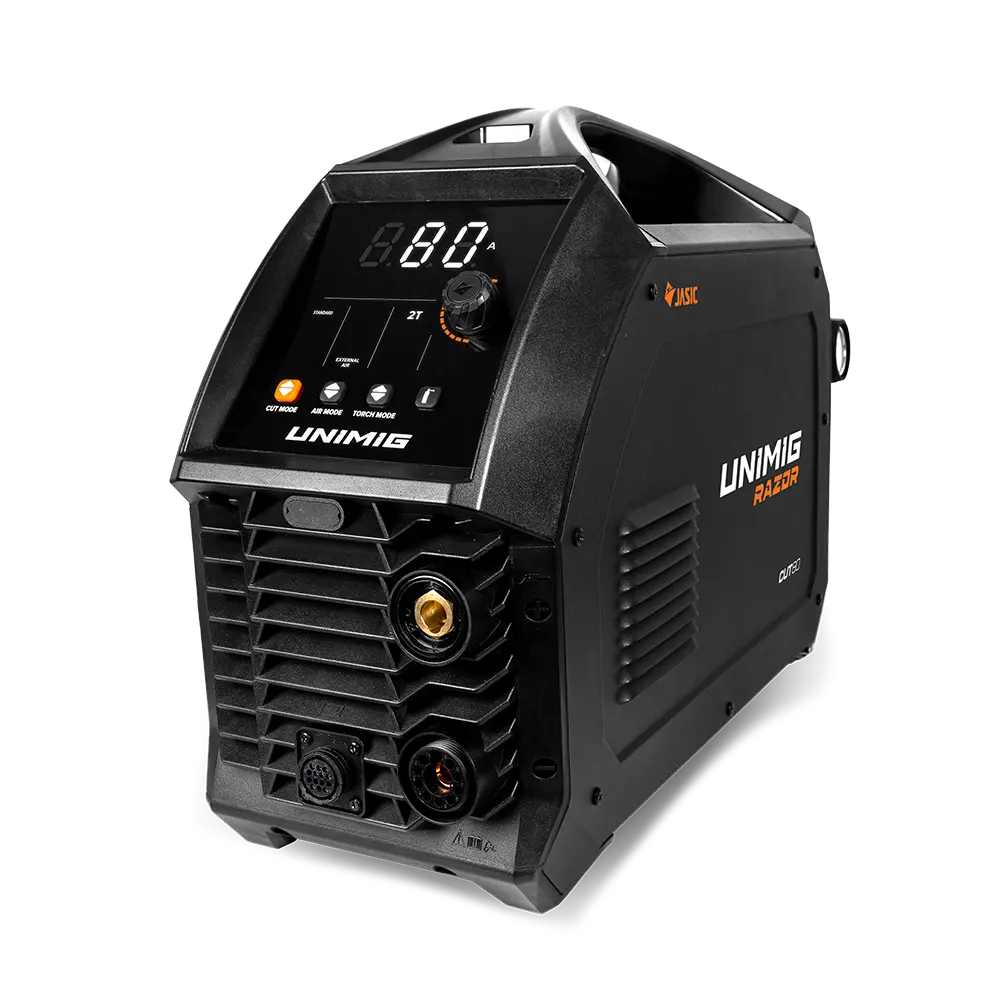

CUT160
IWeldPro patented circuit, stable technology
Dual 150A IGBT modules, ultra-high power
Superior cutting ability, minimal slag, excellent perpendicularity
Explosive arc ignition method, instant penetration of thick plates
Single air valve design, 100% arc ignition at 8 kg pressure
Energy-saving cutting nozzle, more economical than similar products
Best model for air-cooled thick plate cutting, self-locking and non-locking functions
Mesh material cutting function, freely adjustable front and rear air pressure
Equipped with CNC interface and fault code display function
Where To Buy
Product description
Product dimensions
IWeldPro patented circuit, stable technology
Dual 150A IGBT modules, ultra-high power
Superior cutting ability, minimal slag, excellent perpendicularity
Explosive arc ignition method, instant penetration of thick plates
Single air valve design, 100% arc ignition at 8 kg pressure
Energy-saving cutting nozzle, more economical than similar products
Best model for air-cooled thick plate cutting, self-locking and non-locking functions
Mesh material cutting function, freely adjustable front and rear air pressure
Equipped with CNC interface and fault code display function
Dimension(mm)
642×320×640mm
Weight(kg)
46kg
Voltage(V)
380V
Input current(A)
33.33A
Current range(A)
30-130A
un-load voltage(V)
336V
Rated output power(KW)
17.4KW
Duty cycle
100%
Efficiency
93%
